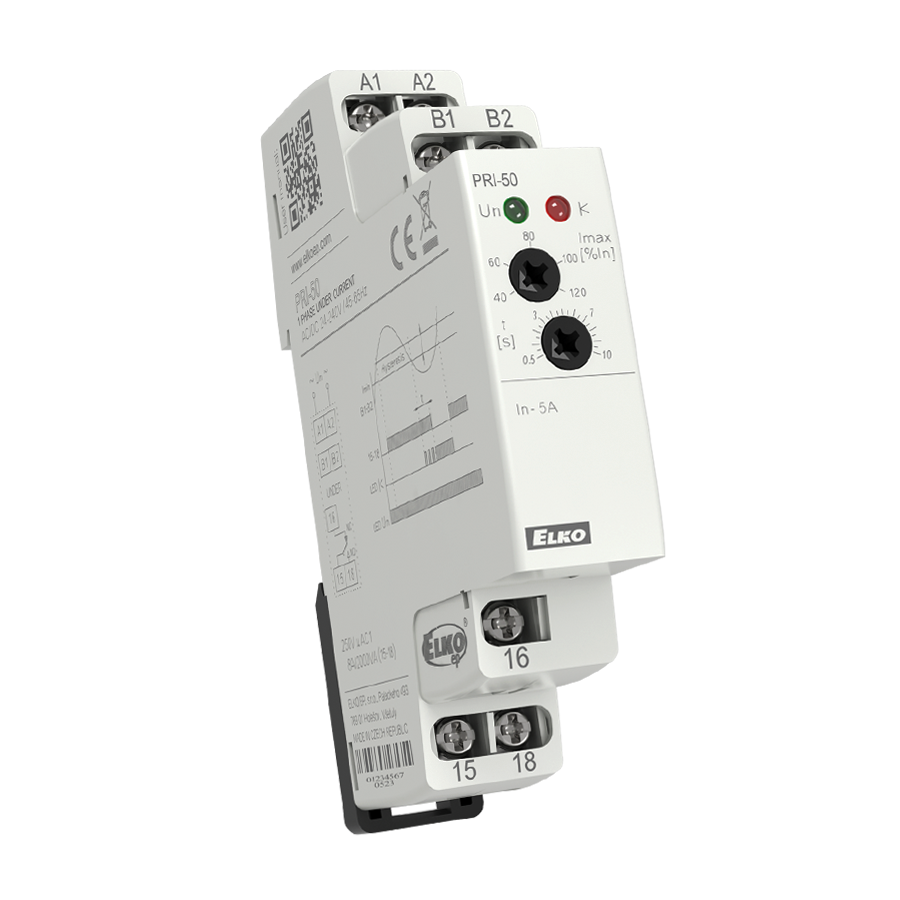

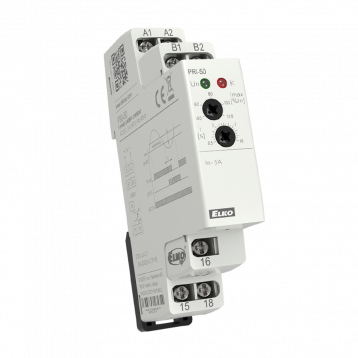

Current monitoring relay of Imin level in 1P - AC PRI-50

Description

• It is used, for example, to monitor the operation of pumps, interruptions of radiators or lighting.
• Continuous setting of tripping current by potentiometer from 2 to 6 A AC.
• Monitors the decrease in current magnitude below the level of Imin.
• Adjustable delay 0.5 - 10 s (eliminate short current peaks, on of short...).
• Possible to use for scanning of current from current transformer.
• Power supply galvanically separated from the monitored current circuit.

Technical parameters

• Voltage type: AC
• Monitored levels: undercurrent
• Monitored range: 2 - 6 A (50/60 Hz)
• Output type: 1x CO, 8 A
• Housing: 1-MODULE
• Supply voltage (frequency): AC/DC 24-240 V (AC 50/60 Hz)

Downloads

• Datasheet PRI-50

  Format: pdf | Size : 151 kB | 03. 03. 2021

• Manual multilanguage PRI-50

  Format: pdf | Size : 1 MB | 12. 06. 2020
